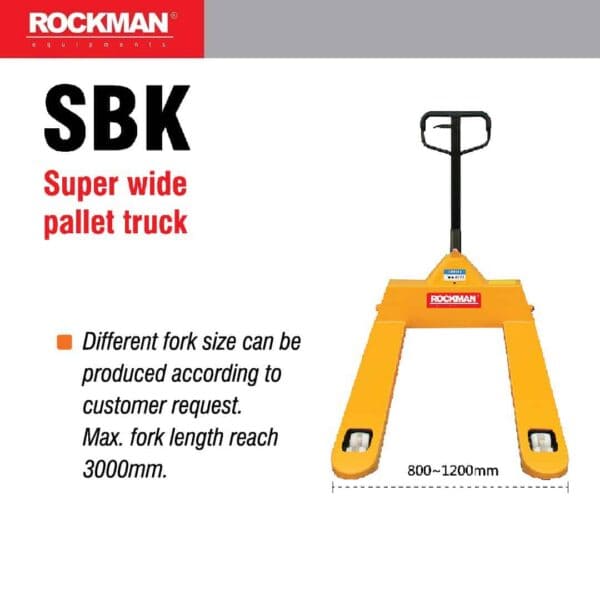

Model |
SBK |
|
| Load Capacity / Rated Load | Q (kg) | 2500 |
| Load Center Distrance | C (mm) | 500 |
| Net Weight | kg | 80-120 |
| Type Size, Front | mm | Φ180×50 |
| Type Size, Rear | mm | Φ80×70/Φ74×70 |
| Lifting Height | H3 (mm) | 200/190 |
| Lowered Height | H13 (mm) | 85/75 |
| Overall Length | L1 (mm) | 1534/1604 |
| Fork Dimensions | s / e / l | 54/160/1150 |

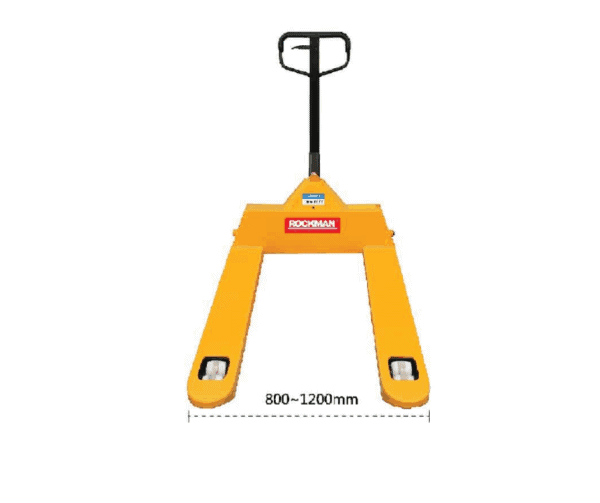

| Distance Between Fork-Arms | b 5 (mm) | 800/1000/1200 |
