- Strong mast material ensure high capacity
- Explosion-proof valve in the pump, to avoid rapid decline to protect the operator
- Over-discharge protection device greatly extends battery life
- Lifting speed keeps smooth regardless of loading weight, which is safe to use
- Maintenance-free design, ensures security, reduces service cost
- Three different types of forks are optional

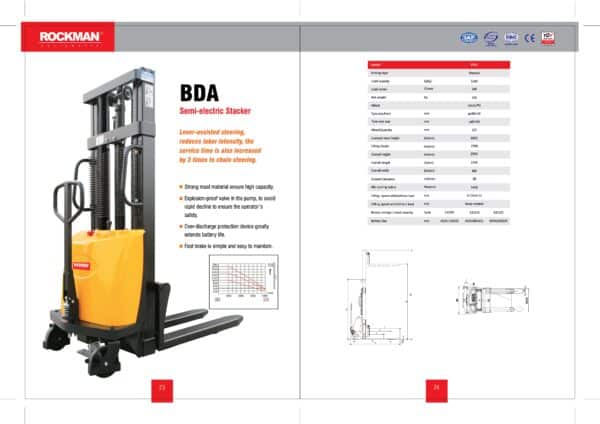

MODEL | BDA | |
LOAD CAPACITY | Q(kg) | 1000/1500/2000 |
LOAD CENTER | c(mm) | 500 |
WHEEL BASE | Y(mm) | 1145 |
WEIGHT (WITH BATTERY) | kg | 265-350 |
WHEEL SIZE, FRONT | (mm) | φ80×70 |
WHEEL SIZE, REAR | (mm) | φ180×50 |
HEIGHT, MAST LOWERED | h1(mm) | 2088 |
LIFTING HEIGHT | h3(mm) | 1600/2500/3000/3300/3500 |
MAST HEIGHT AT MAX. LIFTING HEIGHT | h4(mm) | 2088 |
LOWERED FORK HEIGHT | h13(mm) | 90 |
OVERALL LENGTH | l1(mm) | 1505 |
OVERALL WIDTH | b1(mm) | 800(980) |
FORK LENGTH | l(mm) | 900/1070/1150 |
FORK WIDTH | b5(mm) | 550/660 |
MAST GROUND CLEARANCE | m1(mm) | 28 |
AISLE WIDTH FOR PALLET1000x1200 (1200 CROSSWAYS) | Ast(mm) | 1705 |
AISLE WIDTH FOR PALLET 800×1200 (1200 LENGTHWAYS) | Ast(mm) | 1755 |
TURNING RADIUS | Wa(mm) | 1210 |
LIFTING SPEED,LADEN/UNLADEN | m/s | 135/150 |
LOWER SPEED,LADEN/UNLADEN | m/s | MANUAL |
LIFTING MOTOR POWER | kW | 1.6 |
BATTERY VOLTAGE/NOMINAL CAPACITY | V/Ah | 12/(120/135/150) |
